TECH SPECS

Features and Benefits

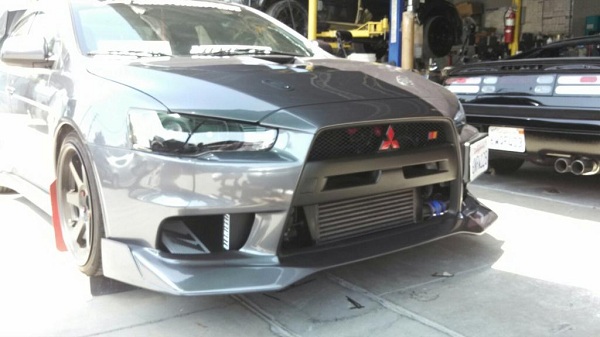

- Direct fit application designed specifically for the Mitsubishi Lancer Evolution X

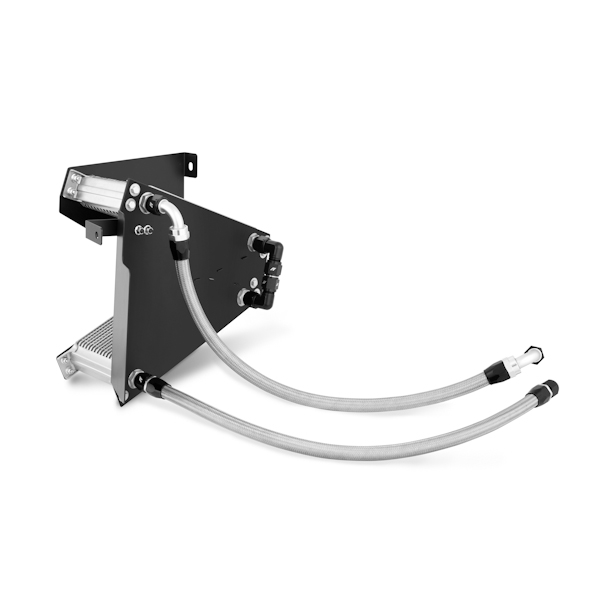

- Includes two 19 row oil coolers run in series for optimum cooling

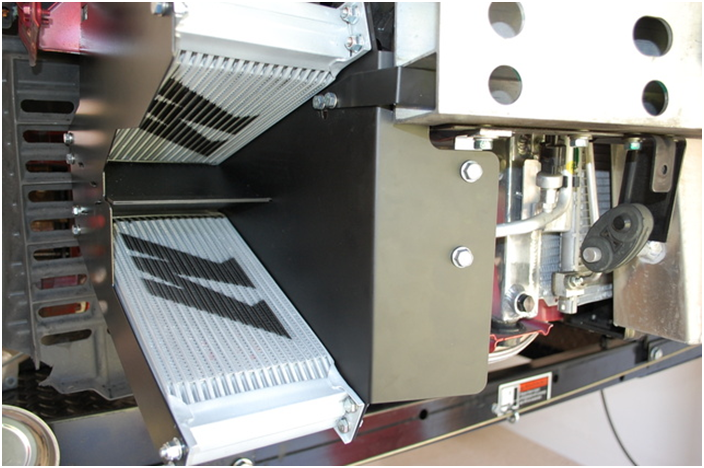

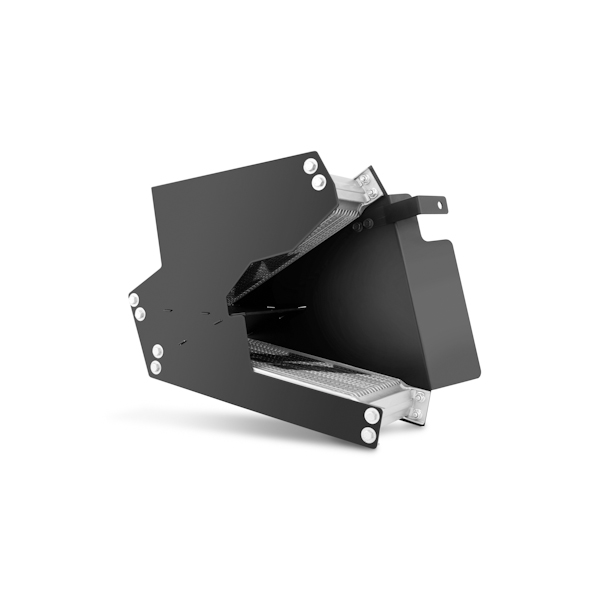

- Special engineered mounting brackets also serve as ducting to channel air to coolers
- Adapts to thermostatically controlled OEM oil housing
- Prevents car from going into limp mode under aggressive street or track conditions

Increase in Oil Capacity
0.65 Quarts (0.613L)

Temperature Difference
Over 10 degrees

Pressure Drop
0 psi

INSTALLATION TORQUE SPECS
15-25 ft/lbs (operating range) for all straight fittings and banjo bolts. Do not exceed the maximum torque rating of 35 ft/lbs.Purchase Includes

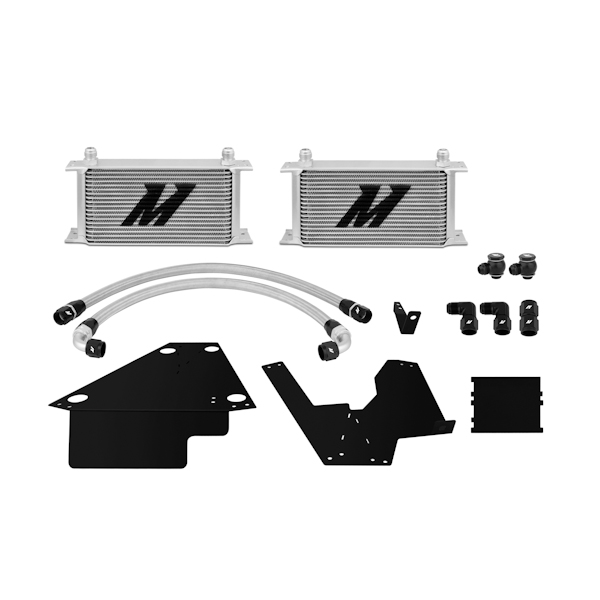

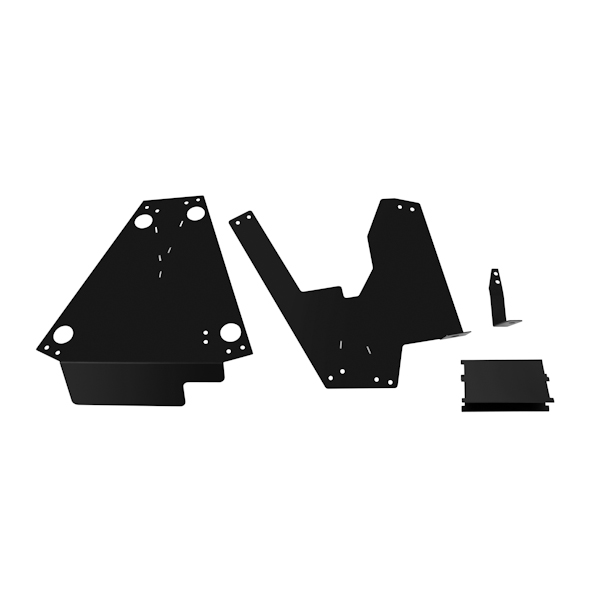

(4) - Application Specific Mounting Brackets
(2) - 19 Row Oil Cooler
(1) - 2ft Stainless Steel Braided Hose w/ -10AN Fittings
(1) - 2ft 1.5in Stainless Steel Braided Hose w/ -10AN Fittings

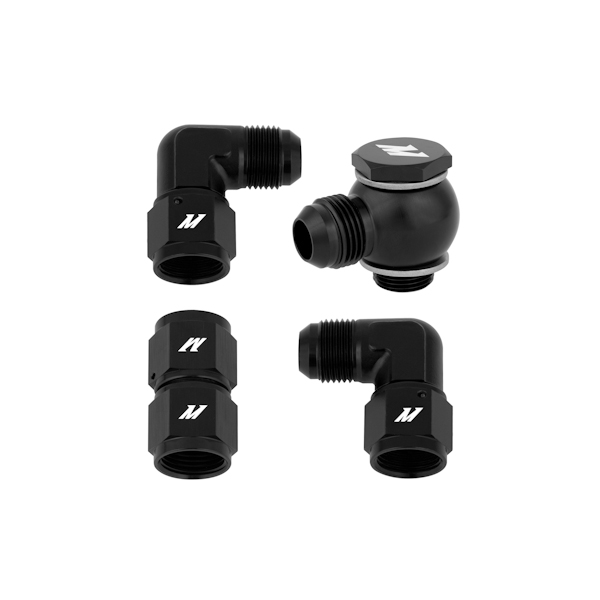

(2) - 90° -10AN Female to Male Swivel Adapter
(1) - Straight -10AN Female to Female Adapter
(2) - Banjo Fitting w/ Bolt M18 x -10AN, Black
(1) - Mounting Hardware Set

Engine Codes
4B11T

Chassis Codes
CZ4A

Caution
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com

LIFETIME WARRANTY

Purchase Includes
(1) - Silicon Coupler
LIFETIME WARRANTY Mishimoto Performance (MP), warrants all of its products under its 'no questions asked' limited lifetime warranty policy. Regardless of the defect in product, Mishimoto will replace the original product. Warranty claims must be accompanied by the original sales receipt from an authorized dealer.

A trained professional should install all MP products. Any issues with compatibility or installation should be addressed before attempting to install the product.

The purchaser's remedy for breach of this limited warranty, exclusive of all other remedies provided by law, is expressly limited to repair or replacement of any part or parts. All products returned for warranty consideration must be returned to MP with all transportation expenses prepaid.

MP shall not be responsible for damages to its products or injury to persons using the products in any manner that would constitute improper operation, including but not limited to: incorrect opening of radiator pressure caps, burst hoses, unintended application or usage not intended by MP, negligence, improper installation, or any other use that may cause damages or injury. MP shall not be responsible for injury or harm to persons or property when caused by persons or vehicles using its products.

Accident Protection

Mishimoto, under its no questions asked warranty policy, will provide a warranty for all claims including vehicles involved in accidents. Warranty claims must include pictures of the accident and an official police report, and must be within three months of the accident.

Fitment Disclaimer

All Mishimoto products are engineered to fit with OEM applications, as well as other Mishimoto products.

Mishimoto will not be held responsible for fitment issues caused by attempted installation of additional aftermarket parts. This includes, but is not limited to, performance parts and any other non-OEM replacement parts. Fitment with different brands cannot be guaranteed.

Furthermore, Mishimoto will not be held responsible for fitment issues caused by an accident. Many times, clearances needed for installation are very strict. If a vehicle has been involved in a front-end accident, available space for a product such as a thicker aluminum radiator may be compromised.

For all warranty claims, please contact us.
