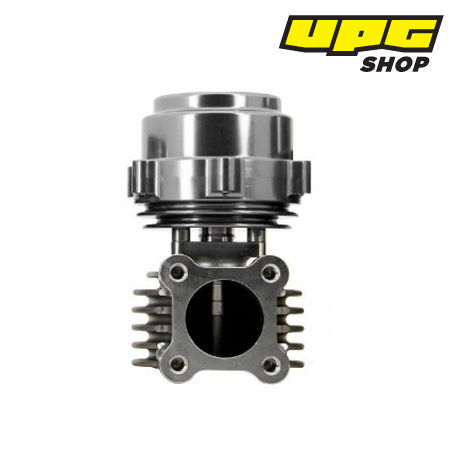

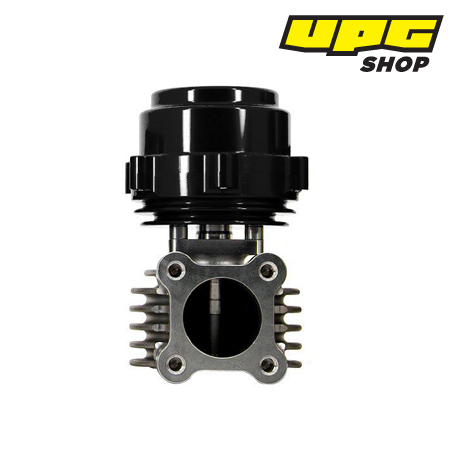

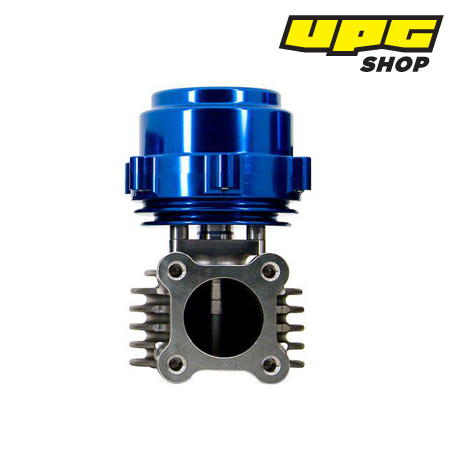

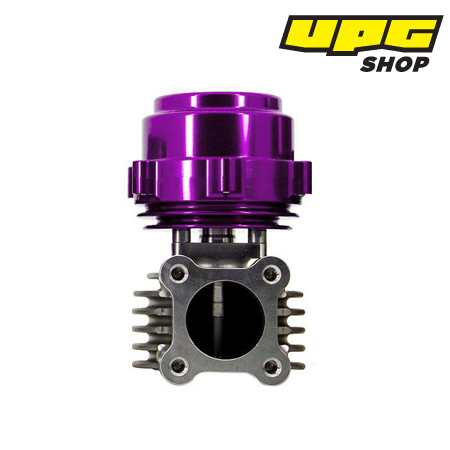

TiAL Sport F 46mm Wastegate

TiAL Sport F46mm wastegate

- Nickel based super alloy is used for valve and high temp NiCrFe alloy for the valve housing offers superior product life under the most demanding conditions (Turbo rotary applications 2000F (1093C) exhaust temperatures)
- High temperature silicone Nomex reinforced actuator diaphragm rated to 4 Bar
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature to resist "relaxing" at temperatures to 900F (483C)
- Nitronic 60 Stainless Steel is used for the valve seat, valve bushing, and lower housing fastening hardware
- Flows .32Kg/S at 1 Bar
- Colour anodized 6061-T651 aluminium actuator
- Wastegates are shipped with fasting hardware, 10mm aluminium banjo type air fittings, and gaskets
- Race proven at Daytona 24hour on a Porsche GT2 Twin Turbo.

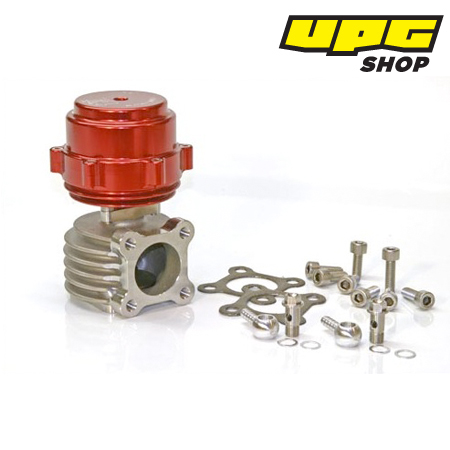

Included with every TiAL F46:

F46 Assembly, F46 Valve Seat, 8 Stainless Steel Bolts, 2 TiAL Air Fittings, 2 Gaskets, 2 Weld Flanges.
