TiAL Sport F 38mm Wastegate

TiAL Sport F 38mm Wastegate

Price: €255.14

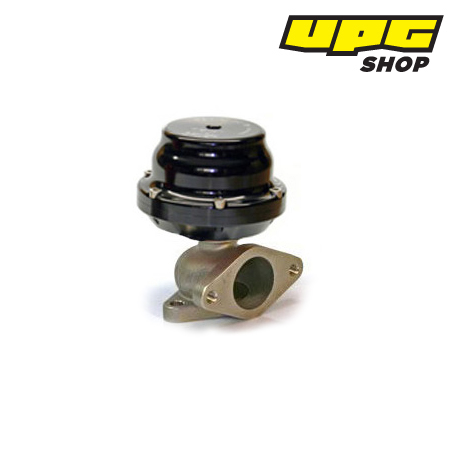

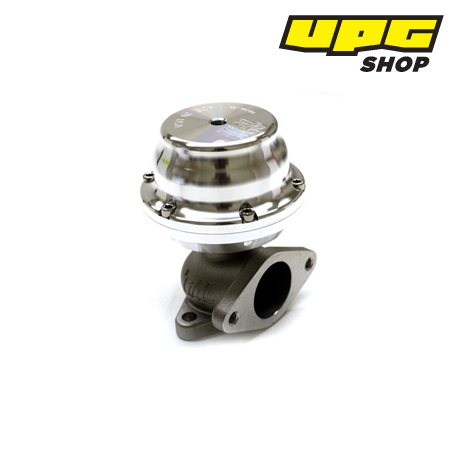

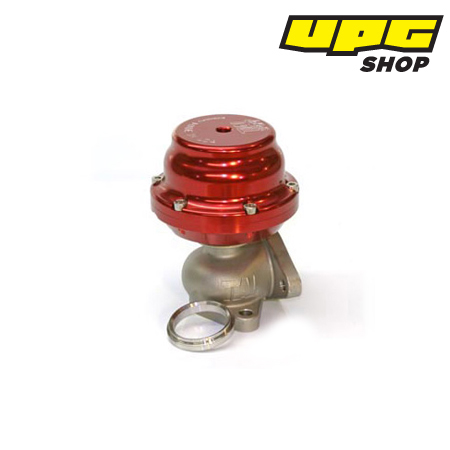

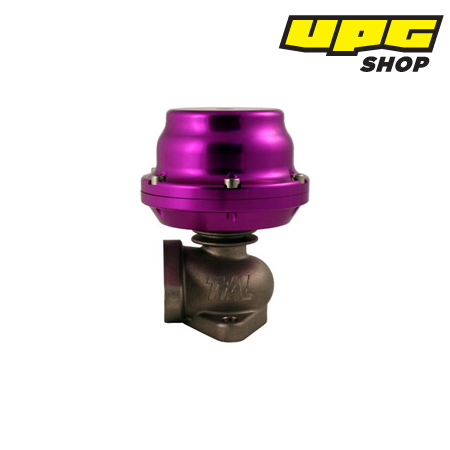

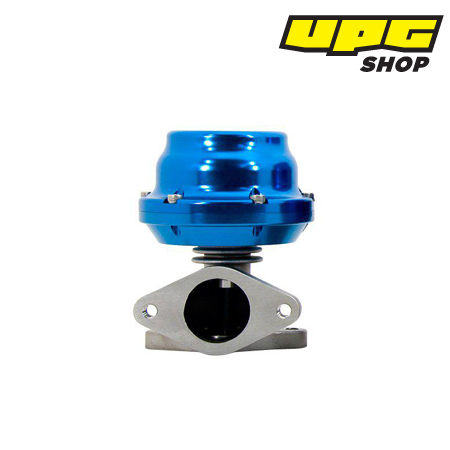

TiAL Sport F 38mm Wastegate

The classic 2 bolt flange wastegate. We first produced the F38 back in 2001 and it's still going strong today. This wastegate has a 38mm valve - same as the MV-S, and its body is about an inch taller.

- High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
- High temperature silicone Nomex reinforced actuator diaphragm
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature to resist "relaxing" at temperatures to 900F (483C)
- Nitronic 60 Stainless Steel is used for the valve seat and valve bushing
- All Stainless Steel hardware
- Mating weld flanges are 304L or 1018
- Colour anodised aluminium actuator

  • Code: TiAL Sport F38-Black
  • Manufacturer: TiAL
  • Weight: 2.000 Kgs

Product options


Price: €255.14
Quantity: Rate this product


Included with every Tial F38:

- F38 Assembly

- F38 Valve Seat

- 2 TiAL Air Fittings

- 2 Mounting Bolts



TiAL's F38 is equipped with the racing valve stem.
The Wear Coating is resistant to the corrosive effects of Lead oxide which is present when running leaded racing fuel.
F38 Option
Flange Materials 304L Stainless 1018 Steel
Pipe Size Inlet Flange: 1.50" OD, Outlet Flange: 1.50" OD

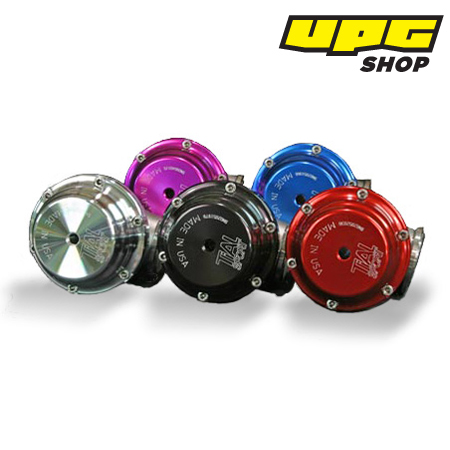

Colors Black, Blue, Red, Purple, Silver
Spring Pressures .25bar to 1.6bar
Thread Air Ports (2): M10 x 1.0
